(TbDy)Fe2 Giant Magnetostrictive alloy parts

λ// (1kOe) 500~700 x10-6
λ//(0.5kOe,10Mpa) 800~1200 x10-6
d33 2.7~20.0 10-9m/A
k33 0.7~0.9
Density (ρ g) 9.20~9.25 g / cm3
Acoustic Velocity (Cb) 1700~2700 m/s
Curie Temperature (Tc) 380 °C
Relative Permeability (μ r) 5~10
Resistivity (r e) 60 μΩ.cm
Young's Modulus (E) 2.5-4.0 x1010 N/m2
Tensile Strength (σ bb) >= 25 MPa
Compressive Strength (σ b) >= 400 MPa

Shape: round rod, disc, rectangle bar, plate, odd; Customized design is welcomed
Size: diameter (side length) from 3 to 50 mm, length (thickness) from 2 to 250 mm
TbDyFe Giant Magnetostrictive alloy parts

TbDyFe Giant Magnetostrictive alloy parts

Characteristics

Hi performance, Good consistency
the performance fluctuation of the different parts of the product or different products is lower than 10 percent.

High density and good quality
density>=9.2g/cm3 and compressive strength >=400MPa.
The material structure is compact and uniform.
No flaws, holes and block-falling. High strength, smooth and bright surface.

Complete specifications
Directional solidification crystals, casting materials and powder metallurgy etc. products can be manufactured.
Shape: round rod, disc, rectangle bar, plate, odd; Customized design is welcomed
Size: diameter (side length) from 3 to 50 mm, length (thickness) from 2 to 250 mm
Coating can be added for the products according to the requirement of the users.
Customized design is welcomed

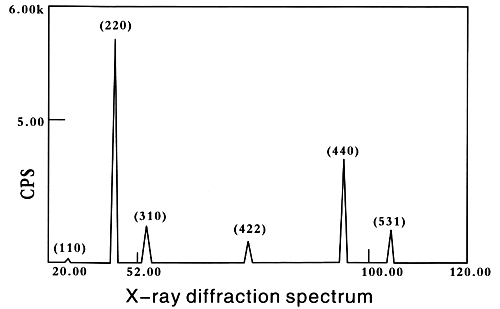

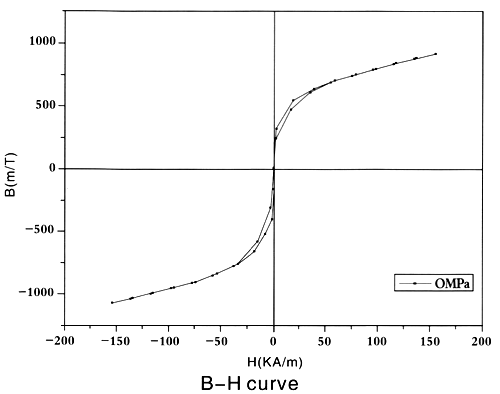

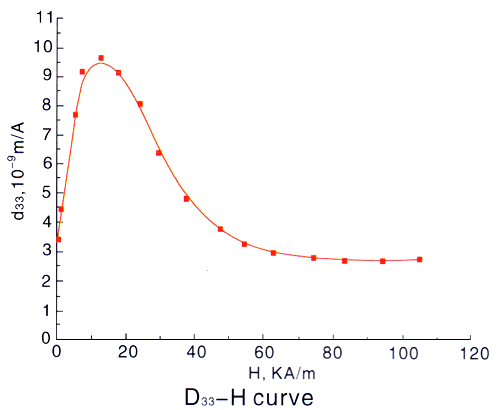

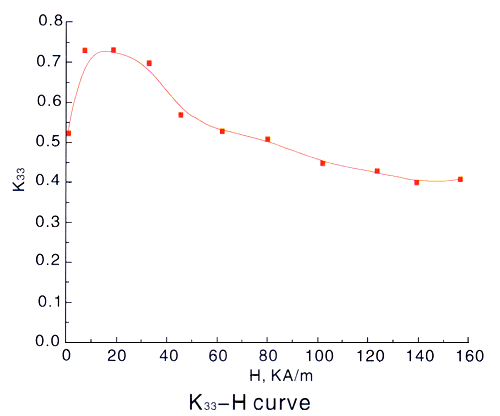

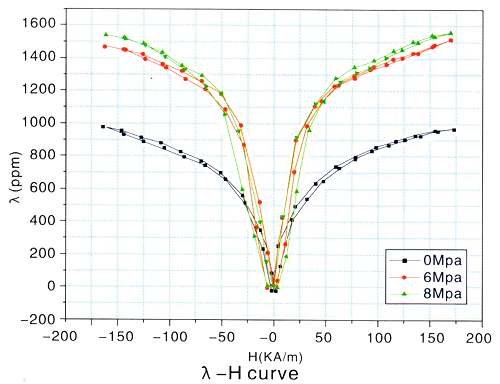

Performance curves (for a pervious sample only)

TbDyFe Giant Magnetostrictive alloy parts


TbDyFe Giant Magnetostrictive alloy parts

TbDyFe Giant Magnetostrictive alloy parts

TbDyFe Giant Magnetostrictive alloy parts

TbDyFe Giant Magnetostrictive alloy parts

Applications

The magnetostrictie strains fo traditional materials are quite low (λ//=10~100 x 10-6). Several RE giant magnetostrictive alloys (GMM) were developed in 1960’s~1980’s, one of which is (TbDy)Fe2 twinned single crystal with <112> preferred orientation. Its strains is more than 1000 x 10-6 at 0.5kOe. Compared with piezoceramics, (TbDy)Fe2 is 4 times greater and its power density is 20 times higher.

Magnetic acoustic transducers: Underwater sonar is most important application for GMM. GMM can also be applied to land sonar, sonic transducers and ultrasonic transducers, speakers.

Actuators: applications in this aspect include linear motors, inchworm motors, robots, fuel injection pumps, active inhibiting vibration system and ink jet print heads.

Controllers: e.g. the fluid, can be controlled directly; Servo valves can be controlled indirectly by controlling the fluid; Other practical applications including precision machining, switches and phase modulators etc.

Sensors: e.g. micro-displacement sensors, accelerations sensors, audiphones and noise or vibration sensors etc.

Electronics elements: e.g. sound surface waves element, delay lines, filters and etc.

*λ// is the axial strain, under 39.8-79.6kA/m magnetic field at 5-10Mpa pre-stress, when the rod axis parallel to the field.
